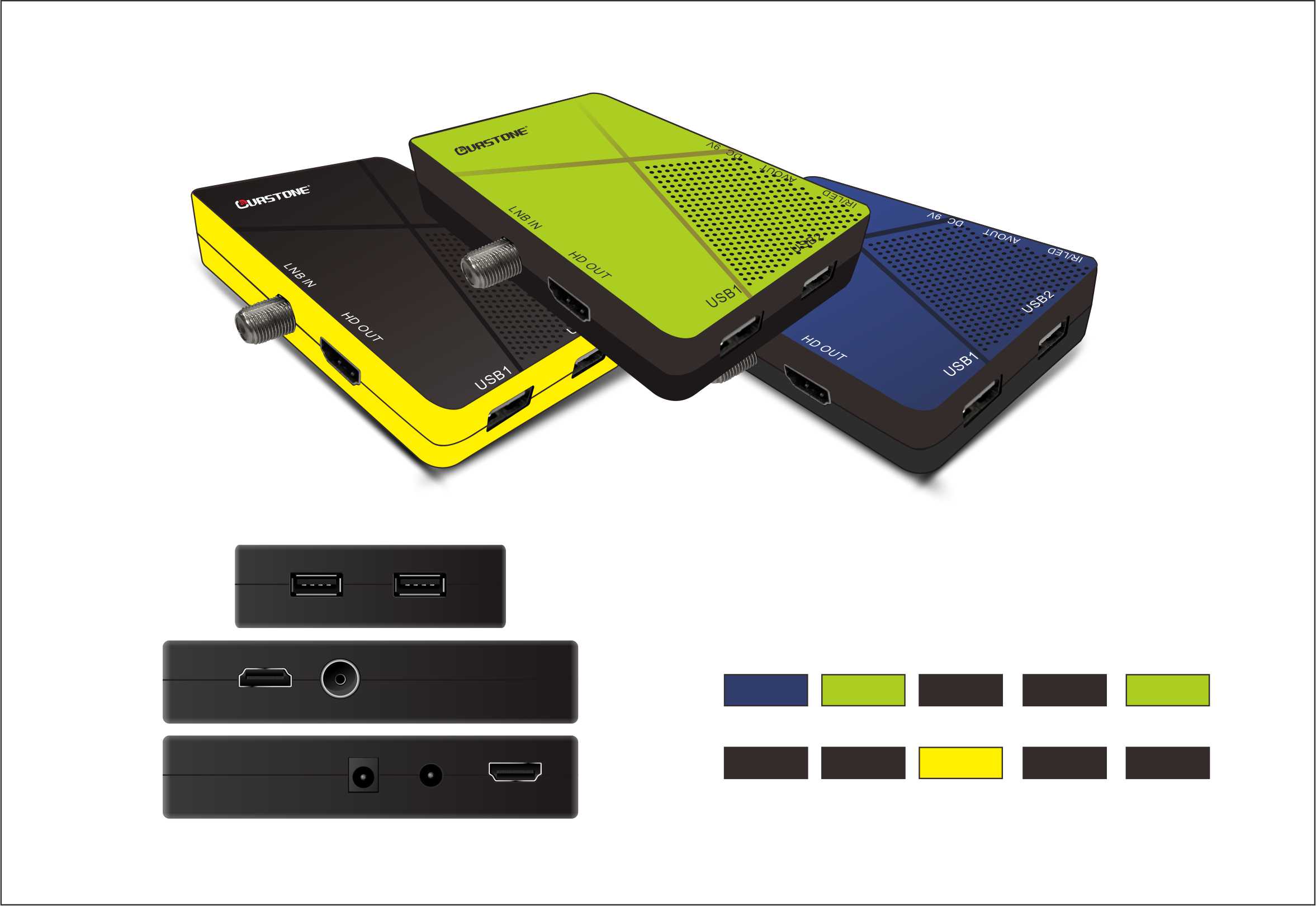

DVB-S2 MINI HD

Model Type Mainchip: SUNPLUS1506HV/GX6605S
Support :WIFI ,MULTISTREAM,T2MI
Function：
     1. Fully DVB-S/DVB-S2/MPEG-2/MPEG-4/H.264 compliant
     2. CVBS/RGB/YPbPr/Scart output supported,USB 2.0 port PVR, multi-media player
     3. SCPC & MCPC receivable from C/Ku band satellites
     4. DiSEqC 1.0/1.1/1.2/1.3(USALS) supported
     5. Universal LNB, NIT search support
     6. DiSEqC1.0/DiSEqC1.2 and USALS protocols
     7. Electronic program guide (EPG) , VBI Teletext,Supports up to 64 satellites
     8. Up to 2,500 transponders, Frequency range: 950 — 2,150MH
     9. Auto/Manual Program search, Multi-language supported
    10. USB 2.0 for PVR, Timeshift, Software upgrade, Multimeida Playback,OTA software upgrade
    11. Transmission mode: LDPC/BCH (DVB-S2) 8PSK/QPSK, DVB-S QPSK
    12. Support up to 5000 channels
    13. Support up full HD 1080P

 DVBS2 Specification
 InputFrequency Range 950MHz to 2150MHz
 Input Inpedance 75Ohms unbalanced
 Signal Input Level -65 ~ -25dBm
 Symbol Rate 2-45Mbps
 LNB Power 13/18V,Max 350mA
 47-862 MHz
 Demodulation
 Demodulator QPSK/8PSK
 FEC Modes Rate 1/2,2/3,3/4,5/6,7/8,8/9,9/10
 System Resources

 Video Decoder
 Standard ISO/IEC 13818-2 and ISO/IEC 14496-10
 Transport stream ISO/IEC 13818-1
 Video decoding “MPEG-2 SD/HD (MP@ML and MP@HL), MPEG-4 H.264/AVC SD/HD
 JPEG,BMP,PNG, Motion JPEG
 AVI, VOB, MOV, MKV
 Video Resolution 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
 Aspect ratio 4:3, 16:9，Auto
 Audio Decoder
 Standard MPEG-1 Layer I & II, MPEG-2 Layer II, AAC, MP3, HE-AAC,AC-3(optional), E-AC-3(optional)
 Sample rate 32, 44.1, 48
 Subtitles & Teletext
 Subtitle DVB Subtitle
 Front Panel
 bi-colored LED Support 4/8 Led Display
 USB /Front Panel Buttons CH+/CH-/POWER
 Rear Panel
 Digital HDTV video output with HDCP.
 LNB Input IEC169-2 Female
 OPTICAL&COAXIAL No
 RS232 Optional
 USB 2pcs
 CVBS & Audio R/L RCA(3 ports)
 RF output Connector (bypass)IEC60169-2 Male (F Male)
 Accessories
 Remote control unit IR 38kHz NEC
 User Manual 1 in English
 Cable 1(Optional)
 Power
 DC INPUT /AC input range 100V-240V 50Hz/60Hz
 Power consumption Max 18W
 Physical
 Operating Temperature 0 ~ 45 °C
